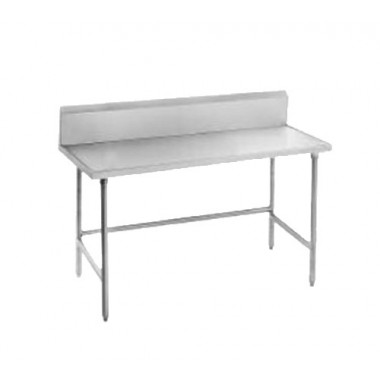

96" W x 30'' D
14 gauge 304 stainless steel top with countertop non drip edge
10''H backsplash
Stainless steel legs with side & rear cross rails
Adjustable stainless steel bullet feet
NSF
(1) TA-93: Wall Clips, (for 5" & 10" splash only) (per table)
(1) TA-33: Special working height (per table)
(1) TA-366A: Reinforced understructure under table top (increases capacity of table top by 30%) (each)
(3) TA-19: Flanged Bullet Foot Insert, stainless steel (per foot) (fully collapsed it is 1-1/2? tall)
(1) TA-23: Table legs welded to undershelf or cross rails, shipped set up and crated (per table) Top is not welded to legs (for fully welded table specify TA-23A)
(1) US-30-72: Work Table Undershelf, for work tables 72"W x 30"D, 18 gauge stainless steel, NSF (actual shelf is 6" shorter than table width & depth) (suggested maximum load 300 pounds distributed weight)
(6 ft) TA-9: Rear splash, 1-1/2" high, for undershelves, (per linear foot)
(6 ft) TA-94: 16 gauge 304 stainless steel undershelf upgrade (per linear foot)
(1) TA-11B: Sink Welded Into Table Top, 16"W x 20"D x 12" deep bowl, includes faucet, NSF (must specify sink location)
(1) K-50OMIT: To Delete Faucet
(1) K-472: Faucet hole revision (each)
(1) K-15: Lever Waste Drain, twist handle operated with built in overflow, fits 3-1/2" drain opening, 2" NPT & 1-1/2" IPS outlet connections
(1) K-4: Support Bracket, for lever waste drain handle, (1) support required for each lever drain
(1) SHD-2020: Drawer, 20"W x 20"D x 5" deep drawer pan insert, heavy duty, self-closing, stainless steel, NSF
(1) TA-76: Paint on sound deadening under top (supplements standard sound deadening under support channels) (each)
(1) Weld-In sink - single bowl
(1) 12" wide
(1) TA-227-3: Splash mounting provision for 96" or longer
(1) PT-12S-72: Overshelf, table mounted, single, 72"W x 12"D, stainless steel, uprights of shelf, splash mounted
(6 ft) TA-99: 16 gauge 304 stainless steel wall & overshelf upgrade, (per linear foot)
